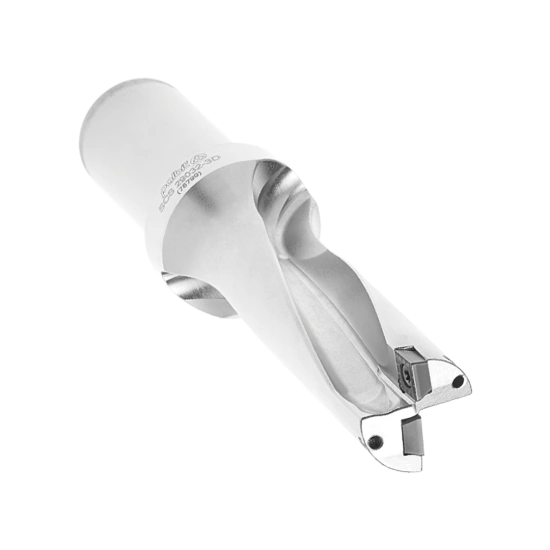

DRILL SCS 45040-3D

Name: Palbit SA
Address: Palhal - EM 505 Rua das Tílias S/n, Albergaria-a-Velha, 3850-582 Branca, PT
Telephone: +351 234 540 300

184046400 | BROCA SCS 45040-3D

Product data

Operation type (CTPT)

Drilling

Connection diameter (DCONMS)

40 mm

Cutting diameter (DC)

45 mm

Chip flute length (LCF)

140 mm

Usable length (LU)

135 mm

Protruding Length (LPR)

175 mm

2D drawing (DXF)

Article code

290031700

Reference

P0501300

Article code

290013200

Reference

XT20-S40
